2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
1 / 5
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM
2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM

2 Years System MPPT Power PWM Modular Charge Solar Panel Controller OEM

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications
Model NO.
stin-480V
Condition
New
Certification
ISO, CE
Application
Solar Controller, Charger, Lighting Station
Rated Voltage
480V
Transport Package
Wooden Case
Origin
Changzhou
HS Code
9032899090
Production Capacity
20,000 PCS/Month
MPPT Modular Charge Solar Controller
Key Features
⚡
High performance 32-bit processor with excellent EMC design for stable operation.
📈
Advanced MPPT tracking algorithm with efficiency exceeding 99.9%.
🛡️

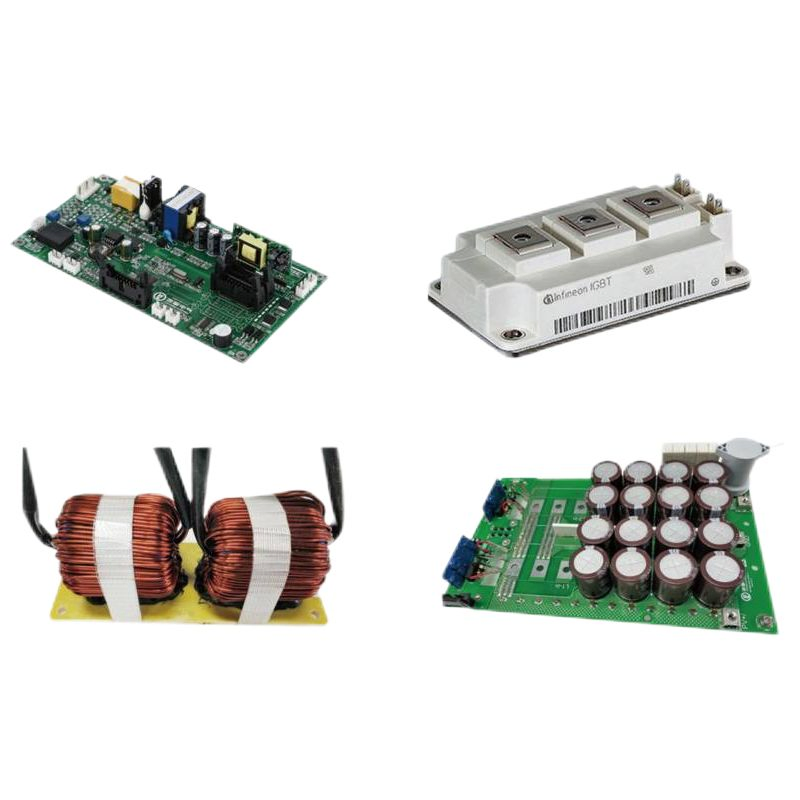

IGBT power module as electronic switch for improved stability and multi-phase rectification.
🔋
Current-limiting charging function, compatible with GEL, LEAD-ACID, and LITHIUM batteries.
🌡️
Enclosed duct design with high-speed cooling fan for harsh environmental performance.
📊
Comprehensive data statistics for daily, monthly, and total charging capacity tracking.
Technical Parameters
Rated system voltage 192V240V288V300V360V384V420V480V540V
Rated Charging current 50A / 60A / 70A / 80A / 100A
Charging technology MPPT (Max. Power Point Tracking)
MPPT efficiency >99.9%
Max. input voltage 750V
Charging method Four stages: MPPT fast, Equalize, Float, End charging
Over voltage disconnect (V) 256320384400480512560640720
Equalize charging (V) 230.4288345.6360432460.8504576648
Float charging (V) 220.8276331.2345414441.6483552621

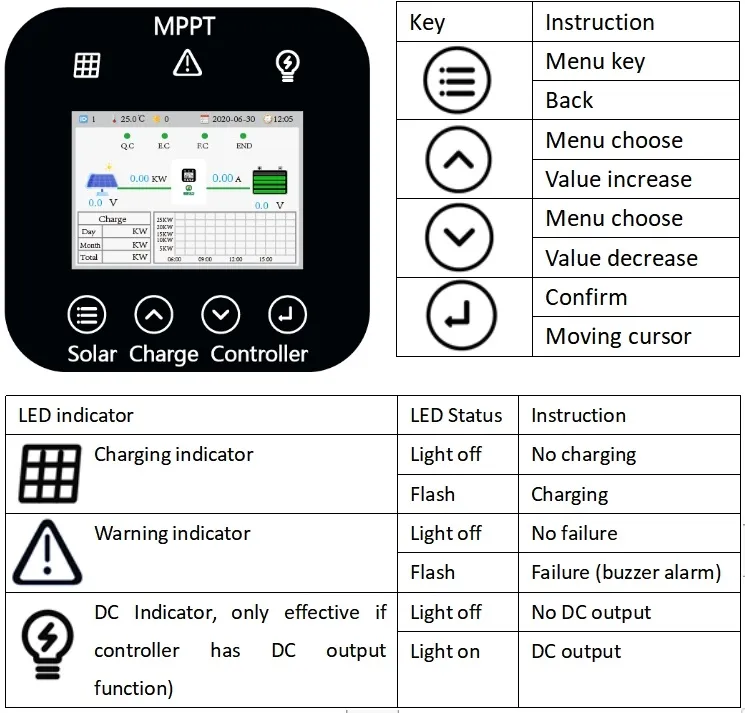

Display & Language LCD+LED / English
Protection level IP32 (Indoor)
Dimension & Weight 494*384*197mm / 27KG

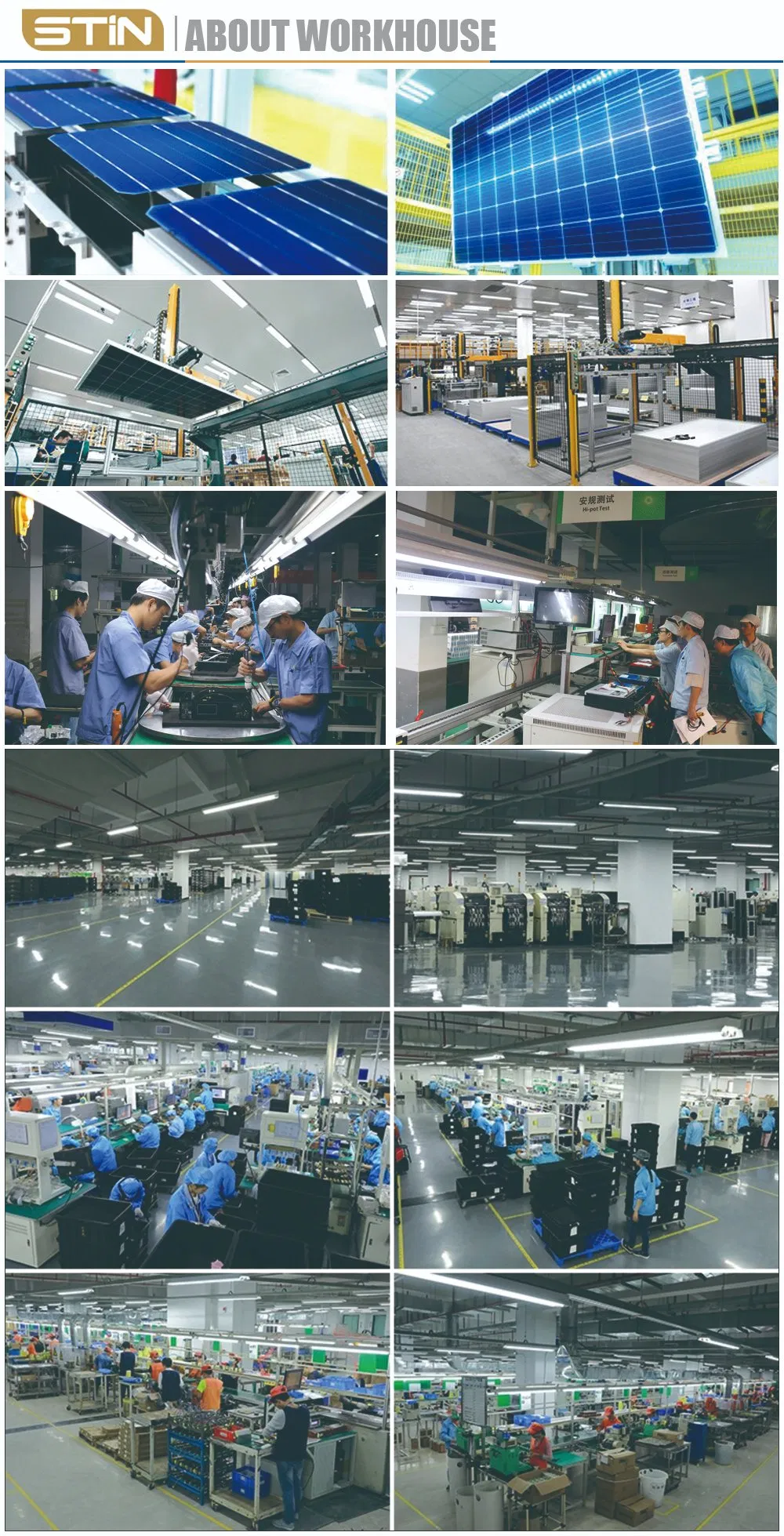

Product Layout
Feature 1 Feature 2 Feature 3
Frequently Asked Questions
❓ What are the main products available?
We offer mono and poly solar panels, gel and lithium-ion solar batteries, on-grid and off-grid solar systems, solar inverters, and MPPT/PWM solar charge controllers.
❓ What are the advantages of these solar products?
With over 10 years in the solar industry, we provide extensive experience and full technical support from system design to final installation.
❓ Can I request samples?
It depends on the specific product. Generally, sample fees are returned upon placing a full-scale mass order.
❓ How is shipping calculated?
Once quantity is confirmed, shipping is calculated based on the preferred method (Sea, Air, or Express like DHL/FedEx) and the destination port.
❓ What is the Minimum Order Quantity (MOQ)?
The minimum order quantity is 1 piece.
❓ What payment methods are accepted?
We accept various payment methods including T/T, L/C, Paypal, and Western Union.
